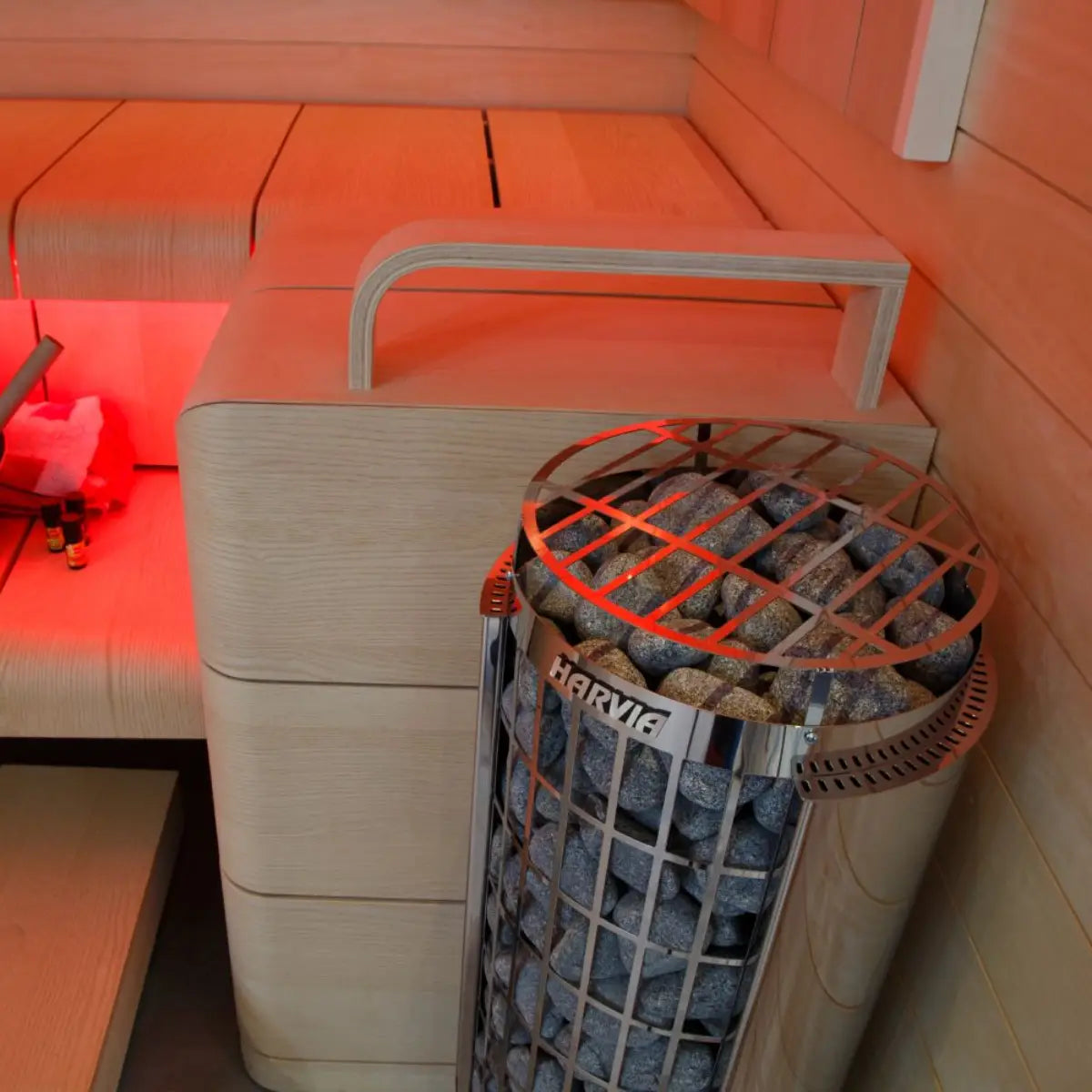

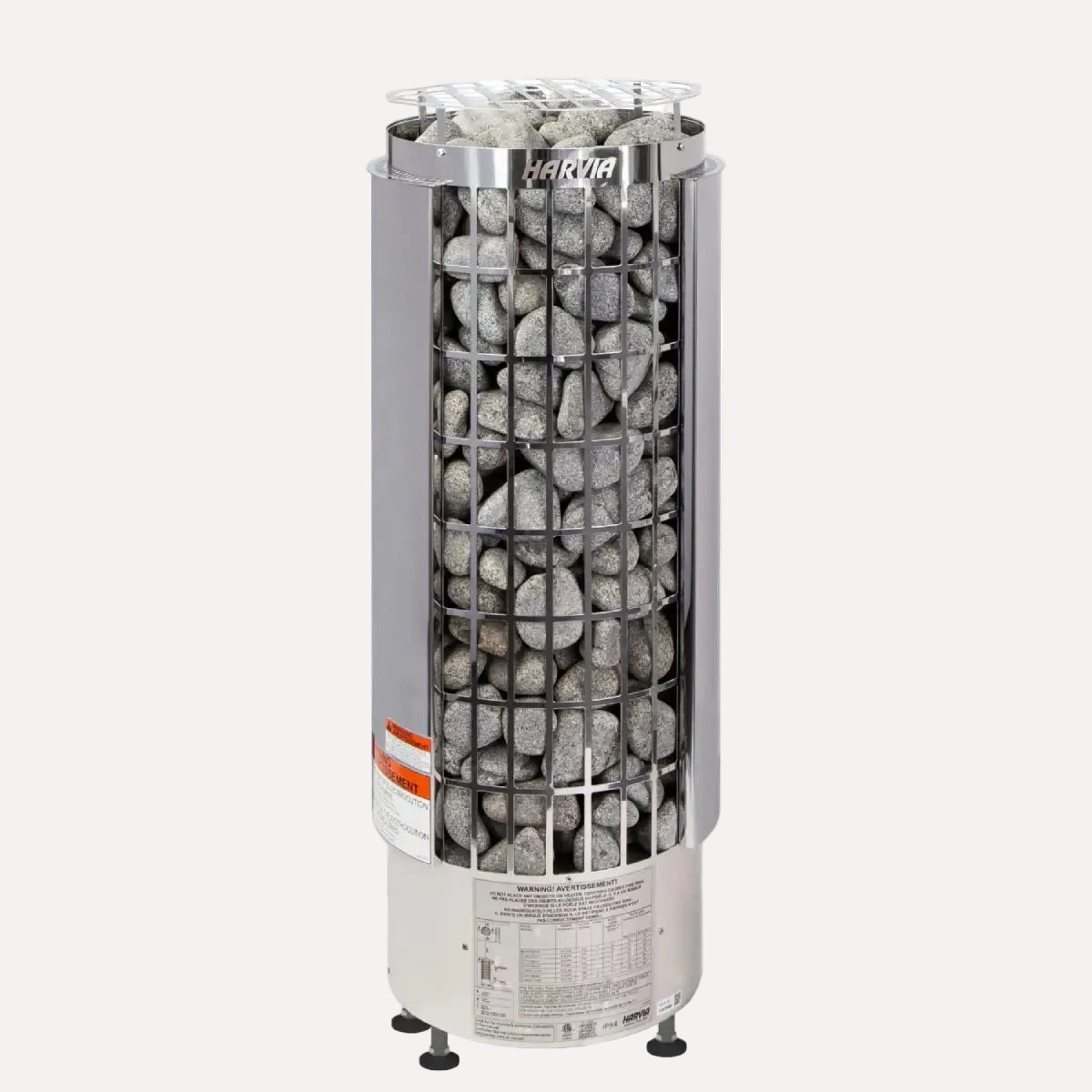

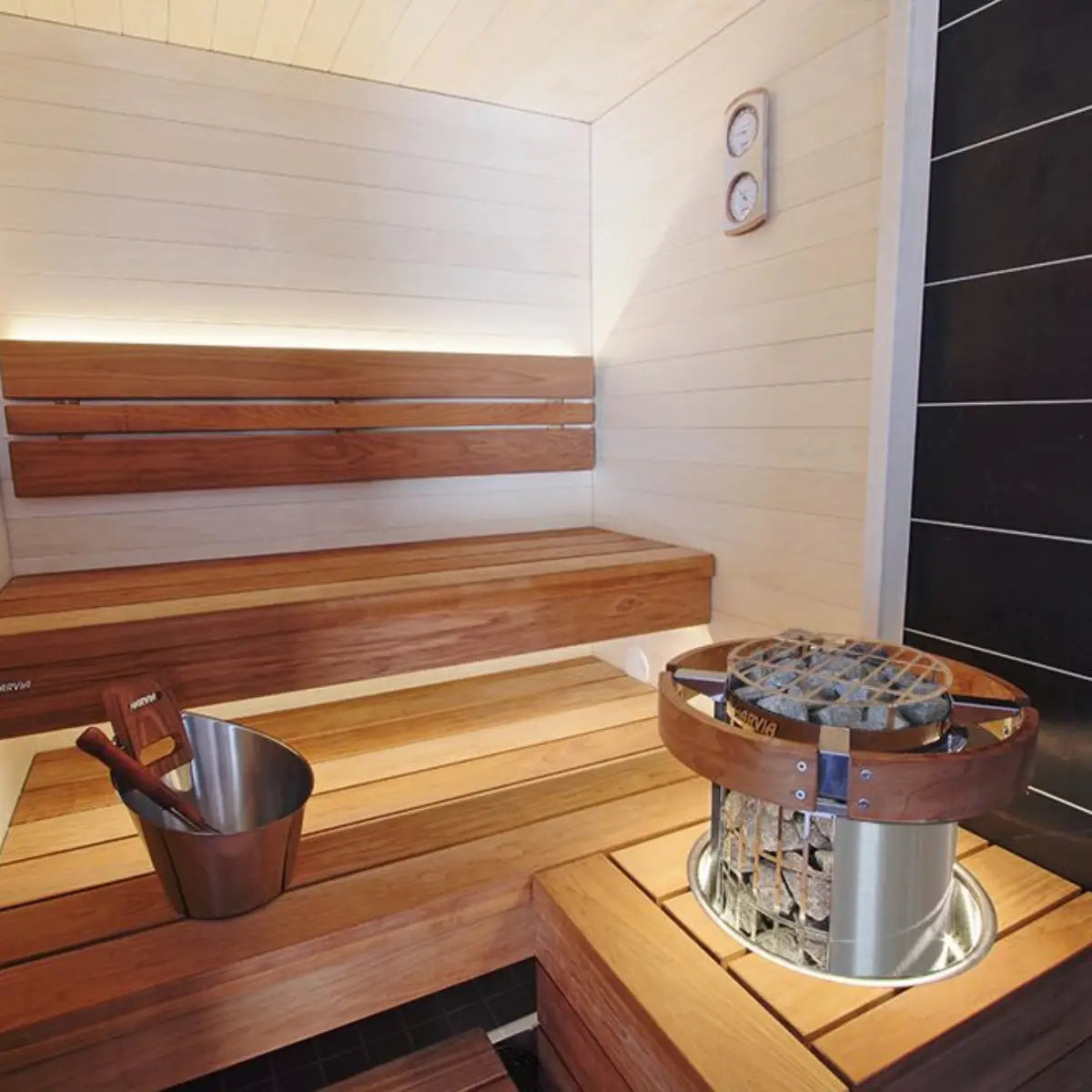

Harvia Cilindro PC90E 9kW Electric Sauna Heater
Get it by Sun, Aug 9
Specifications 9 kW • 282 to 494 cu ft • 200 lb stones • 240V / 1-phase
Full technical and electrical specifications for the Harvia Cilindro PC90E.
Power: Requires 240V / 1-phase, 37.5 A on a 50 A main breaker, wired with (2) #6 conductors plus ground to the sub-panel. Must be hard-wired by a licensed electrician.
Heat: Traditional Finnish sauna heat. Pour water over the 200 lb stone column for soft, rich steam.
What's in the Box & Setup Heater unit, mounting hardware and manual. Stones and digital control sold separately.
The PC90E ships as the heater unit only. A Harvia Xenio digital control and sauna stones are required and ordered separately.
In the box
- Harvia Cilindro PC90E heater unit
- Mounting hardware
- Installation and operation manual
What you provide
Stones and control are sold separately so you can match them to your build.
- 200 lb of sauna stones
- Harvia Xenio digital control (CX30)
- Licensed electrician for hard-wiring
Setup notes
- Digital control required The PC90E has no built-in controls. Pair it with a Harvia Xenio (CX30) digital control unit with FX404 contactors.

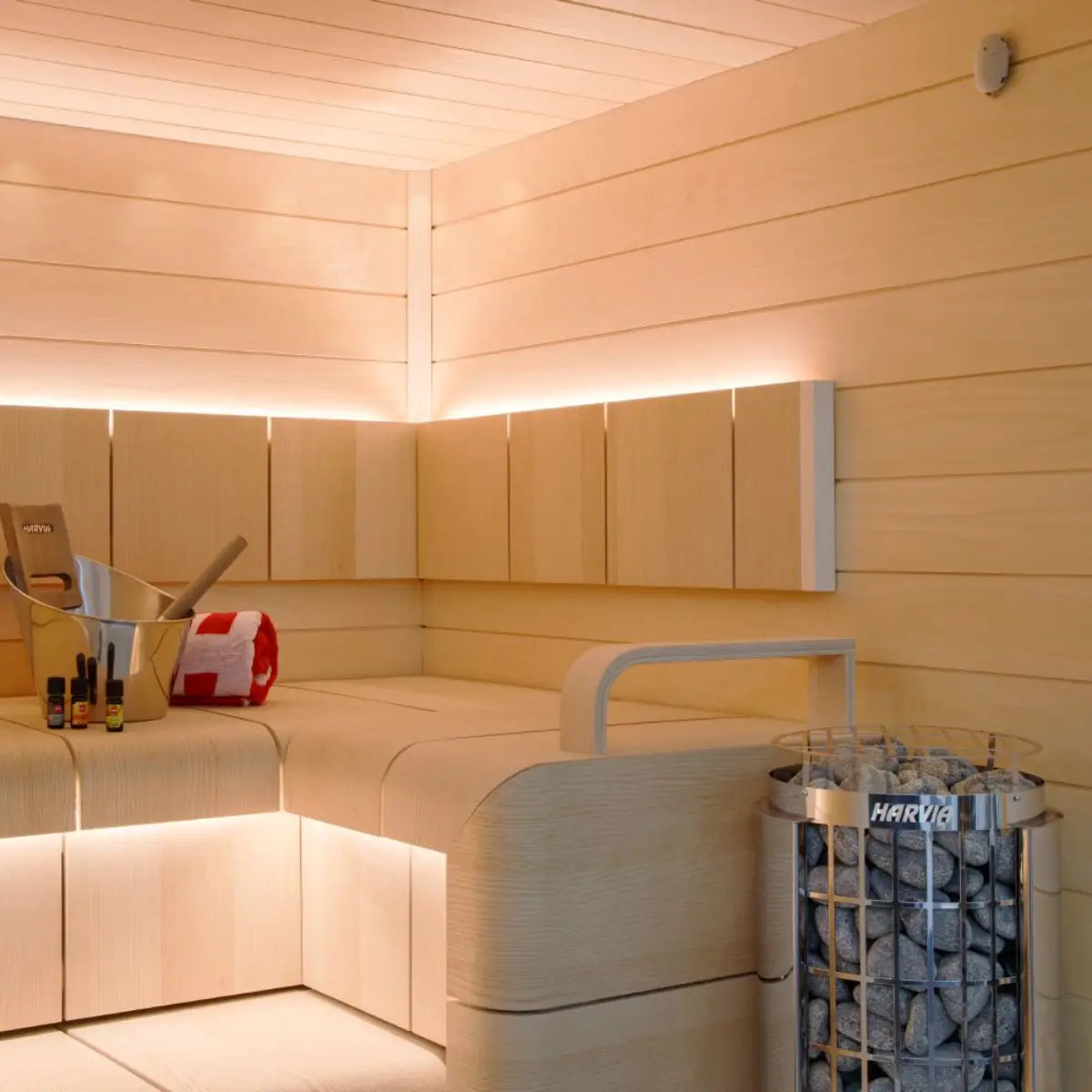

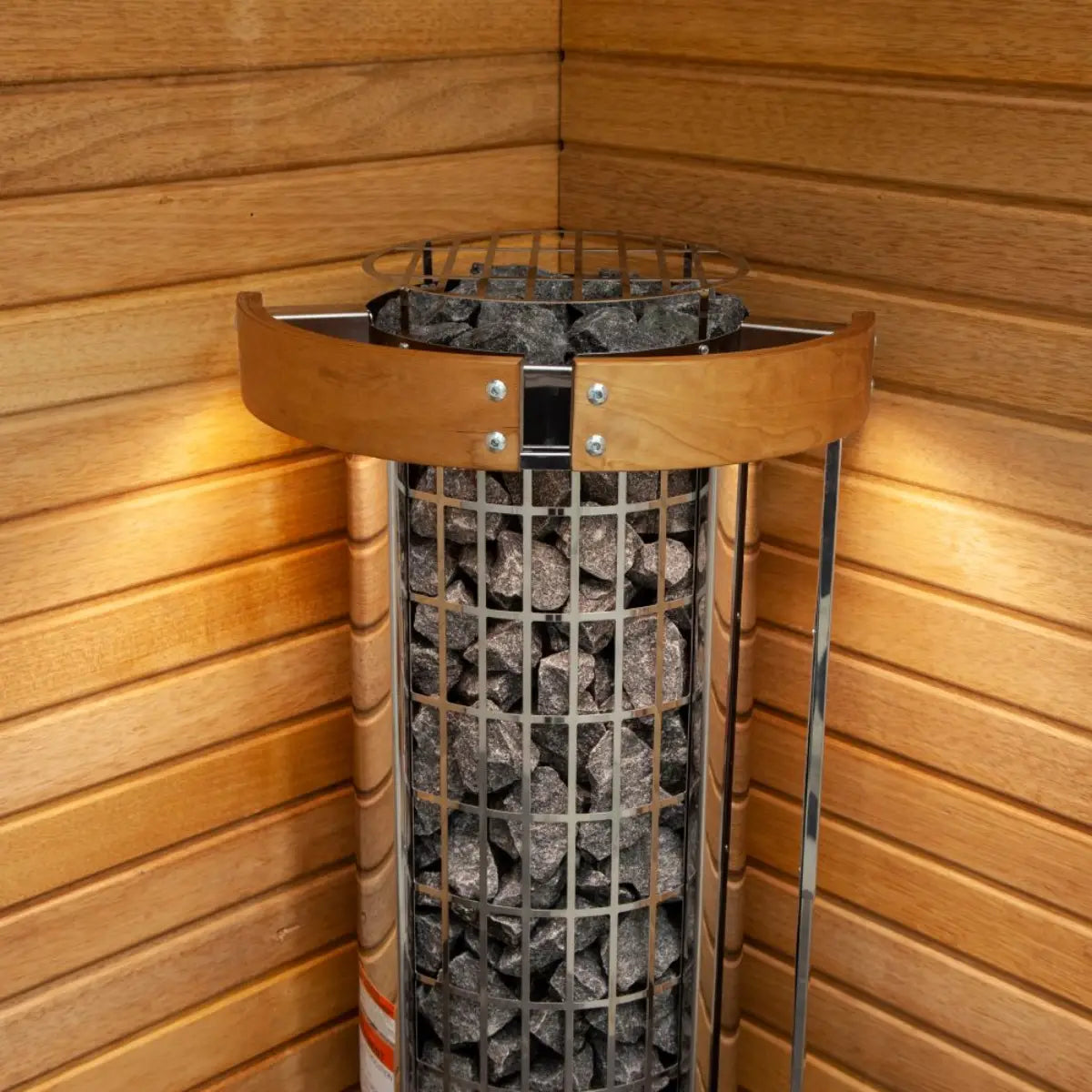

- Corner or wall placement The cylindrical body fits neatly in a corner or along a wall for a space-saving install.
Recommended for assembly
All electrical work must be completed by a licensed professional.
- Screwdriver
- Level
- Correct gauge wiring
Setup questions? Email info@saunass.com
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
6 kW heater options
Compare Harvia Cilindro heaters
Find the right Cilindro for your room size.
| Heater | Cilindro PC60E | Cilindro PC80E | This modelCilindro PC90E | Cilindro PC110E |
|---|---|---|---|---|
| Power | 6 kW | 8 kW | 9 kW | 10.5 kW |
| Control | Digital (Xenio) | Digital (Xenio) | Digital (Xenio) | Digital (Xenio) |
| WiFi app | Optional | Optional | Optional | Optional |
| Stone capacity | 200 lb | 200 lb | 200 lb | 200 lb |
| Design | Cylindrical tower | Cylindrical tower | Cylindrical tower | Cylindrical tower |
| Safety railing | Optional | Optional | Optional | Optional |
| Best for | 141 to 354 cu ft | Up to 450 cu ft | 282 to 494 cu ft | Large rooms |
All Cilindro PC-E models require a Xenio digital control, sold separately.
